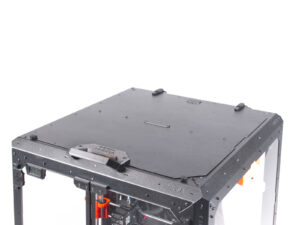

6A. Hinged Lid with MMU3

Relevante para :

Enclosure MMU3

Ultima actualización 4 days ago

Dificultad

Difícil

Pasos

Idiomas disponibles

Paso 1 Introduction

⬢This chapter guides you through the installation of the MMU3 into the Enclosure.

⬢The MMU3 can only be installed after the Hinged Lid is in place.

Since the MMU3 is compatible with multiple printer models, note that some parts of your printer may slightly differ from the pictures. However, the assembly process remains the same.

Paso 2 Piezas imprimibles

⬢If you didn't receive the printable parts in your package, you can download them from Printables.com and print them.

⬢https://www.printables.com/model/980267-mmu3-enclosure-addon

⬢However, to complete the installation, you'll also need to obtain a package of additional hardware, including screws, nuts, long PTFE tubes, and magnets.

The necessary components are available ONLY in the MK4S + MMU3 + Enclosure Bundle.

Paso 3 LCD Removal

⬢If you have the LCD mounted on the enclosure, follow these steps:

⬢From the inside, remove the two screws holding the LCD

⬢Disconnect the LCD cable / cables.

⬢On MK4/S, disconnect also the grounding connector.

⬢Move the cable bundle to the inside of the enclosure.

Paso 4 Spool Holder Removal

⬢Remove the two screws on the right side of the Enclosure, holding the spool holder.

⬢Remove the spool holder.

Paso 5 Filament Guide Removal

⬢Press down the collet on the filament fitting on the extruder.

⬢While keeping the collet pressed, pull the PTFE tube out of the fitting.

⬢Corta la brida que sujeta el tubo de PTFE en el lado interior del perfil frontal superior.

⬢Remove the two screws securing the filament guide and take it out of the enclosure.

Paso 6 PSU Removal

⬢Place the printer at an angle (as shown) inside the enclosure, positioning it behind the anti-slip dampers.

⬢Unlock all PSU locks, then grasp the handle and remove the PSU assembly from the back panel.

⬢Place the PSU on the heatbed, protected by a cloth, with the PSU handle facing upwards.

Paso 7 Printer Removal

⬢Open the top lid.

⬢Grasp the printer by its frame and carefully lift it out of the enclosure.

Avoid scratching the printer and enclosure.

Paso 8 MMU3 Installation

If you are installing a new MMU3 unit onto the printer:

⬢If necessary, re-connect the LCD to the printer so that it’s functional again.

⬢Continue to the MMU3 Assembly guide

Once you've installed the MMU3 unit on the printer, test it. Afterward, return to this guide and proceed with the next step.

⬢If you have temporarily disconnected the MMU3 unit from the printer during the enclosure assembly, continue to the next step.

Paso 9 Buffer Removal

⬢Disconnect ALL PTFE tubes from the buffer.

⬢Move the buffer away from the printer.

In the following steps, we will prepare the Enclosure and modify the Buffer before installing them into the Enclosure.

Paso 10 Spool Holders: Parts preparation

⬢Para los siguientes pasos, por favor prepara:

⬢mmu_enclosure_spoolholder (5x)

⬢mmu_enclosure_spoolholder_R3_cap (5x)

⬢M3x20 screw (5x)

⬢M3x12 screw (10x)

⬢M3x10 screw (5x)

⬢M3nN nut (10x)

Paso 11 Spool Holders Preparation 1

⬢Take one spool holder. Add the Cap part onto the small tubular part of the spool holder.

⬢Insert the M3x20 screw through the tubular part and tighten it against the Cap. Ensure it’s tight enough to hold the Cap in place, but still allows it to rotate.

⬢Pro tip: If it’s hard to turn, you can use one of the other spool holders as a handle for the cap part.

⬢Do not tighten the M3x20 screw fully. The cap must be able to rotate freely.

Paso 12 Spool Holders Preparation 2

⬢Add the M3x10 screw onto the end of the Cap. Just start the thread. Do not tighten it up yet!

⬢Install the two M3nN nuts into the openings on the Spool holder. Push them all the way in.

⬢Repeat the same process until you assemble all five spool holders.

Paso 13 Spool Holders Installation 1

⬢Now, let's move on to the right side of the enclosure.

⬢Run two M3x12 screws through the marked openings, from the inside to the outside.

⬢Mount the first spool holder onto the screws. Tighten the screws fully.

Paso 14 Spool Holders Installation 2

⬢Using two M3x12 screws, attach a second spool holder into the bottom front corner.

⬢Using the same technique, mount the remaining three spool holders onto the LEFT side of the enclosure in the marked positions.

⬢Verify that the spool holders are positioned as shown in the picture.

Paso 15 Internal Lock parts preparation

⬢Para los siguientes pasos, por favor prepara:

⬢Internal Lock A (1x)

⬢Internal Lock B (1x)

⬢M3x12 screw black (1x)

Paso 16 Internal Lock Preparation

⬢Insert the M3x12 screw through the Lock B part.

⬢Orient Lock B with the screw pointing upwards and the small protruding part being on the left.

⬢Orient Lock A so that the circular opening is on the left.

⬢The protruding circular part must be pointing up.

⬢Fit the two parts together, ensuring they align properly.

Paso 17 Internal Lock Installation

⬢Open the top lid and remove the screw on the inside that secures the handle.

⬢Orient the lock so that the small protruding part aligns with the opening in the sheet metal.

⬢The screw fits in the place of the one you removed earlier.

⬢Fix the lock in place by tightening the M3x12 screw.

Paso 18 PTFE Side Holder parts preparation

⬢Para los siguientes pasos, por favor prepara:

⬢PTFE_side_holder (2x)

⬢M3x8 screw (4x)

⬢M3nN nut (4x)

Paso 19 PTFE Side Holder Preparation

⬢Insert two M3nN nuts into the corresponding openings on both the PTFE side holders.

Paso 20 PTFE Side Holder Installation 1

⬢On the left side of the enclosure, remove the marked nylon rivet.

From inside the enclosure, push the center pin of the rivet, then pull the entire rivet out from the outside.

⬢Run two M3x8 screws through the marked openings from the inside of the enclosure to the outside.

⬢Attach the PTFE Side Holder onto the screws.

⬢Make sure the lifted part of the holder is pointing towards the front of the Enclosure!

⬢Tighten the screws to fix the holder in place.

Paso 21 PTFE Side Holder Installation 2

⬢On the right side of the enclosure, remove the marked nylon rivet.

⬢Using the two M3x8 screws, fix the other PTFE Side Holder in place.

⬢Make sure the lifted part of the holder is pointing towards the front of the Enclosure!

Paso 22 Covers Removal

⬢On top of the Enclosure, remove the marked two covers.

Push the center part of the rivets holding the covers from the bottom, then remove the rivets from the top along with the covers.

Paso 23 Buffer Mount: parts preparation

⬢Para los siguientes pasos, por favor prepara:

⬢Buffer mount (1x)

⬢M3x6 screw (3x)

⬢M3nN nut (2x)

⬢M3n nut black (1x)

⬢PTFE top passthrough (1x)

Paso 24 Buffer Mount Installation

⬢Insert two M3nN nuts into the marked openings on the Buffer Mount.

⬢Place the Buffer Mount on top of the enclosure.

⬢Ensure the part of the mount with the nuts is oriented toward the front of the enclosure.

⬢Attach the mount to the top lid using two M3x6 screws from the bottom.

Paso 25 PTFE Passthrough Installation

⬢Insert the M3n black nut into the PTFE passthrough part.

⬢Attach the passthrough part onto the back of the top lid.

⬢Secure it in place by inserting the M3x6 screw from the bottom of the lid and tightening it.

Paso 26 Buffer Preparation 1

⬢Take the Buffer itself.

⬢Remove all five cassette cartridges from the buffer.

⬢Remove the M3x30 screw holding the Buffer Leg.

⬢Remove the Buffer Leg.

⬢Reinsert the two M3x30 screws. Tighten them lightly to avoid bending the Buffer.

Paso 27 Buffer Preparation 2

⬢Remove the M3x30 screw holding the printer holder.

⬢Remove the countersunk M3x30 screw on the opposite side that secures the printer holder.

⬢Remove the printer holder part.

Paso 28 Enclosure Buffer: parts preparation

⬢Para los siguientes pasos, por favor prepara:

⬢Buffer Side L (1x)

⬢Buffer Side R (1x)

⬢Buffer Plate Holder L (1x)

⬢Buffer Plate Holder R (1x)

⬢Magnet 2x6x20 (11x)

The magnets are strong but brittle. After separating them, keep them a sufficient distance apart to prevent them from shattering.

Paso 29 Magnets Installation

⬢Install four magnets into the marked openings on the Buffer Side L part.

⬢Install three magnets into the marked openings on the Buffer Side R part.

⬢Install two magnets into the Plate Holder L, and the last two magnets into the Plate Holder R parts.

Paso 30 Enclosure Buffer Assembly 1

⬢Orient the Buffer as shown in the picture: laying flat with the opening for the cassette segments on the left side.

⬢Remove the Plate holder part from the former bottom of the buffer.

Use needle-nose pliers if the plate holder is difficult to remove.

⬢Install the Buffer Side R (the part with three magnets) onto the Buffer, ensuring the magnets are pointing downwards.

⬢Ensure all the plates are fully engaged into the Side R part.

Paso 31 Enclosure Buffer Assembly 2

⬢Remove the two marked plate holders on the opposite side.

⬢Install the Buffer Side L part (with four magnets) onto the Buffer.

⬢Ensure the magnets are oriented the same way as on the opposite side.

Paso 32 Enclosure Buffer Assembly 3

⬢Remove the two Plate Holders.

⬢Install the Plate Holder L onto the Buffer, as seen in the picture.

⬢Ensure the magnets are oriented to the same side as the other parts.

⬢Install the Plate Holder R onto the Buffer. Ensure the magnets are oriented to the same side as the other parts.

Paso 33 Enclosure Buffer Installation

⬢Insert all five cassettes back into the buffer.

⬢

Mount the buffer onto the top lid of the enclosure. The part with the cassettes should hook into the plastic part on the top lid.

⬢The front part of the buffer should hold securely in place due to the magnets.

The enclosure is now ready for the printer installation in the upcoming steps.

Paso 34 Printer Preparation

⬢Before you place the printer in the enclosure, prepare the printer in this state:

⬢PSU is removed from the frame and placed on the protected heatbed

⬢The printer frame support is installed on the printer.

⬢If you plan to use the externally mounted LCD, you can disconnect and remove it from the printer.

Paso 35 Printer Installation

⬢Grasp the printer by its frame and carefully insert it into the enclosure at a slight diagonal angle to prevent scratching both the printer and the enclosure.

Ensure the printer is not placed on any cables or PTFE tubes!

⬢Place the printer at an angle, as shown in the picture, inside the enclosure, positioning it behind the anti-slip dampers.

This is just a temporary position for the printer. We'll adjust it to the correct position later.

Paso 36 PSU Installation

⬢From inside the enclosure, grasp the PSU by its handle.

It's more convenient to use your right hand for this task.

⬢Insert the PSU through the opening at the bottom of the back panel, starting with the PSU retainer (the part with the magnets).

⬢

Tilt the PSU towards the back panel, ensuring the PSU remains outside the enclosure while the PSU holder is inside the enclosure.

⬢Ensure the PSU holder fits perfectly onto all four PSU locks.

⬢Turn all PSU locks 90° to secure the PSU assembly.

Paso 37 Printer Positioning

⬢Rearrange the printer as shown in the picture. Center it in the enclosure and adjust it to the correct position.

⬢Ensure the two rear anti-slip dampers are locked against the rear plate from the inside.

⬢The two front anti-slip dampers must be secured against the front plate from the outside.

⬢Guide the LCD cable bundle under the printer, from the electronics to the front of the enclosure. Leave the cable loose for now.

Paso 38 LCD Installation: parts preparation

If you're using the externally mounted LCD, proceed with these steps. If not, skip them.

⬢Para los siguientes pasos, por favor prepara:

⬢LCD assembly (1x) compatible with your printer

⬢Tornillo M3x8 (2x) que quitaste antes

Paso 39 LCD Connection

⬢Guide the LCD cable bundle through the cutout in the bottom panel.

⬢Place the LCD assembly next to the enclosure, ensuring the holders are pointing away from the enclosure, as shown in the picture.

⬢MK4/S: Connect the xLCD cable to the xLCD board, ensuring the safety latch is properly engaged on the side of the slot marked with the orange triangle on the board.

⬢MK4/S: Connect the grounding Faston connector onto the xLCD

⬢MK3S+: Connect the cable marked with two stripes into the left slot (EXP2)

⬢MK3S+: Connect the cable marked with one stripe into the right slot (EXP1)

Paso 40 LCD Installation

⬢Move the LCD assembly towards the enclosure, as seen in the picture.

⬢Fix it to the metal profile using two M3x8 screws. Tighten the screws fully.

⬢

Secure the LCD cable bundle to the bottom of the enclosure. Guide a zip-tie through the perforation and tighten it around the cable bundle.

Paso 41 PTFE Tubes: part preparation

⬢Para los siguientes pasos, por favor prepara:

⬢PTFE Tube 4x2.5x1100 (5x)

⬢PTFE Clip 3-way (1x)

⬢PTFE Clip 2-way (1x)

Paso 42 PTFE Tube Installation 1

⬢Guide the PTFE tubes from the MMU unit through the opening at the rear of the top lid of the Enclosure.

⬢Connect the PTFE tubes to their corresponding numbered cassettes in the Buffer.

⬢Insert two 4x2.5x1100 PTFE tubes into cassette positions 4 and 5.

Paso 43 PTFE Tube Installation 2

⬢Insert the two PTFE tubes into the side holder.

⬢Guide the PTFE tubes towards the spool holders on the right side of the Enclosure (when looking from the front side)

⬢Push the ends of the PTFE tubes through the cap on each spool holder. The end should be just behind the cap.

The end of the tube should be positioned just behind the cap.

⬢If the PTFE tube is difficult to insert, slightly loosen the M3x10 screw.

Paso 44 PTFE Tube Installation 3

⬢Slightly tighten the M3x10 screw on the cap to secure the PTFE tube in place, being careful not to overtighten.

Tighten the screw very lightly just so that the PTFE tube holds in place. Do not overtighten, as this could cause filament drag and affect the proper function of the MMU.

⬢On the back of the printer, approximately in the middle of the long PTFE tubes...

⬢Join the tubes together using the corresponding two-way clip.
