While moving with the extruder, the X-axis motor works as a generator. You will create a small amount of electricity and the LCD might flicker. Move with the extruder reasonably slowly and in the future always use the printer's controls.

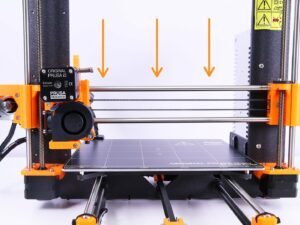

⬢Move the extruder manually all the way to the left.

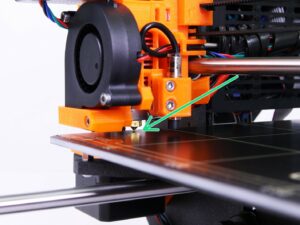

⬢By rotating BOTH threaded rods at the same time on the Z-axis move the nozzle until you reach the heatbed. Try rotating both the rods equally!

⬢Move the extruder carefully all the way to the right.

⬢If an adjustment is needed, you can lower the nozzle height by rotating the right Z motor counter-clockwise.

⬢Move the extruder to the center of the X-axis.

⬢Locate the spare parts package, take the longest zip tie and place it under the P.I.N.D.A. sensor. Use the middle part of the zip tie, not the tip.

⬢Release two screws holding the P.I.N.D.A. sensor and gently press it against the zip tie.

⬢Tighten screws on the P.I.N.D.A. holder again.

⬢A correct height of the P.I.N.D.A. sensor compared to the nozzle should be similar to the last picture.

See our free 3D Printing Handbook - http://www.prusa3d.com/3dhandbookMK2S

⬢Read the chapters 3.2 Disclaimer and 3.3 Safety instructions

⬢Read the chapter 6.3 Setup before printing.

⬢Download and install the drivers - chapter 9 Printer drivers. Don't forget we have ready to print settings for Slic3r, Cura and Simplify3D.
